（常規/加重）
產品介紹 PRODUCT INTRODUCTION

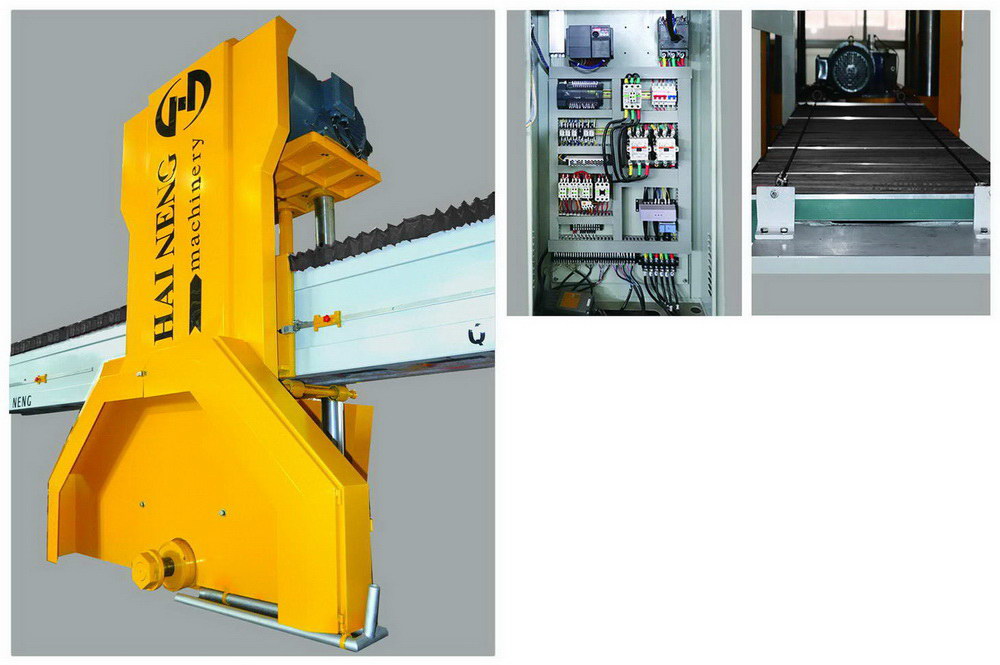

該機采用大跨度橋式結構，橫梁邊梁密封油浸式導軌，自動位移分片，升降系統采用液壓升降(也可采用絲杄升
降)傳動，實現平穩快速升、降刀，橫向走刀采用變頻器可實現無極調速。自動行走切割，并特別設有升降及邊
梁傳動保護裝置。加工時荒料可直接安置于地面，節省臺車及其維護費用。整機加工精細、性能穩定、自動化生
產效率高，安裝、操作、維護方便、適應國際石材加工發展需求。
備注：若生產工藝需要，用戶可加配360度旋轉工作臺。

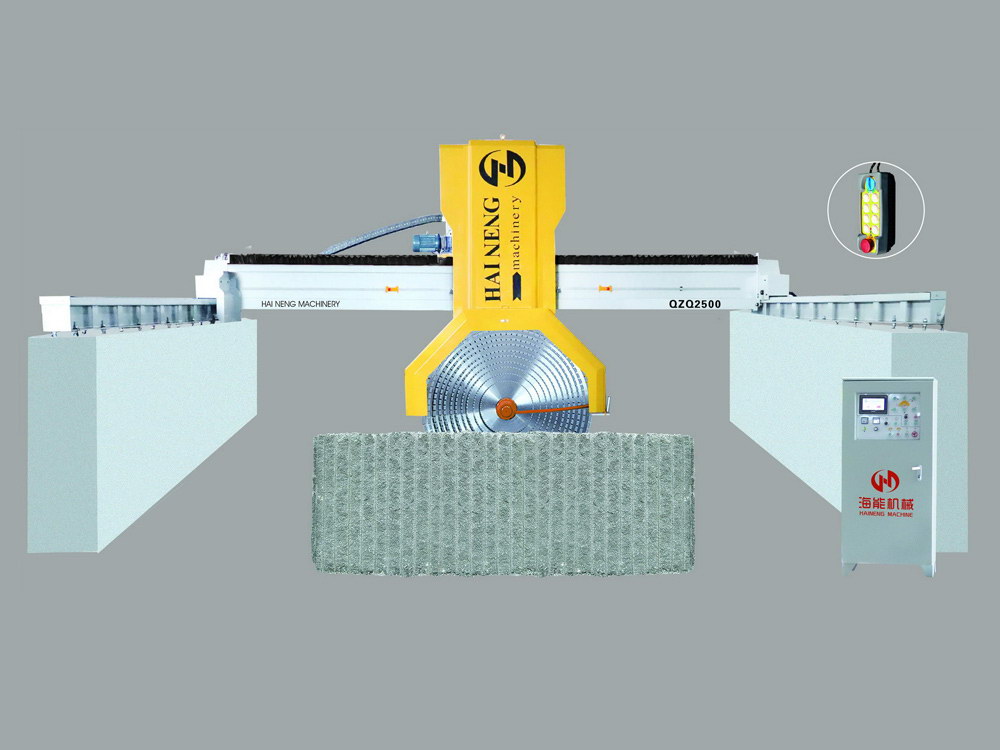

QzQ-2200/2500/2800 adopts big span bridge and beam structure. The crossbeam and side beam are sealed adopt hydraulic lifting
system(or screw lifting system) to achieve smooth and quick reamer rise and down, horizontal feeding system adopts inverter to achieve
stepless feeding, automatic feeding, and in particular with the drive down and side beam protection devices. The slabs are directly installed
on the ground to save costs of maintenance. This machine works accurately with stable performance, high automatic and high efficiency Its
installation, operation and maintenance are very simple. It suits the development of stone industry
Note: the 360 rotating worktable can be selected if customer requires
